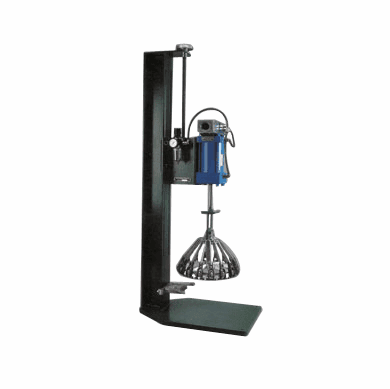

2 Gallon 12 Lug 26 Ga Max Semi-Automatic Lug Closer

Production-type closing station increases pail closing efficiency. Seals cover and crimps all 16 cover lugs simultaneously. 2-palm safety interlock controls keep operator's hands away from pinch points. Powered by an air operated cylinder with a 6” bore and 5” stroke. Requires 80–100 PSI air supply. Frame is made of carbon steel. Heads are made of different metals depending on the type of lug cover being closed: Brass (spark-resistant for use in flammable areas), Aluminum (for non-UN containers) and Steel (for UN containers). Closing jaws on all units are made of malleable iron. Adjusts to accommodate containers 6-1/2” to 20” H. Overall height of unit is 69”.

*Closing both steel and plastic pails? Purchase a pressure plate and burp plug for closing plastic pails, sold separately in the table below. The burp plug helps release air from the pail before the pressure plate seals on the lid. Pressure plate and burp plug are both necessary for closing plastic pails.

Note: A sample pail must be sent to the pail closer manufacturer to ensure a proper seal.Note: A sample pail must be sent to the pail closer manufacturer to ensure a proper seal.

Call Baytec Customer Service at 888.460.DRUM(3786) for assistance.

Features:
Container I.D: 8 1/2"
Container Size: 2 gal
Gauge: 26, 28
Head: Aluminum
No. of Lugs: 12
Wt: 440 lb.
