Description

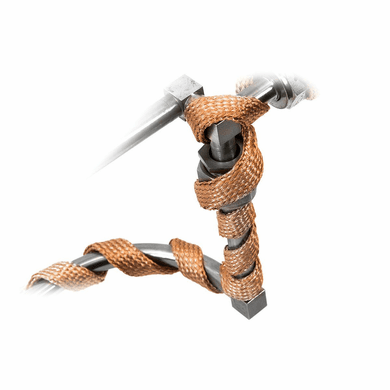

240v | 1672w | 3.25 in (83 mm) | 8 ft (2.4 m) Briskheat flexible fiberglass heating tape, ideal for High-temperature heating needs.
This multi-stranded resistance wire heating element provides exceptional flexibility and durability with rapid thermal response provides accurate heat.
Our fiberglass heat trace is available in a wide variety of length and width configuration options (below); with built-in split-plug design easily connects to your choice of temperature controlling device.
FEATURES
This multi-stranded resistance wire heating element provides exceptional flexibility and durability with rapid thermal response provides accurate heat.
Our fiberglass heat trace is available in a wide variety of length and width configuration options (below); with built-in split-plug design easily connects to your choice of temperature controlling device.
FEATURES
- Maximum exposure temperatures up to 900°F (482°C).
- Multi-stranded resistance wire heating
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
Specifications
- Maximum exposure temperature: 900°F (482°C)
- Construction:Fiberglass knit and braided heating element
- Construction:Fiberglass knit and braided outer sheath
- Power density:Standard: 8.6 W/in2 (0.013 W/mm2 )
- Power density:Wide: 5.1 watts/in2 (0.008 watts/mm2)
- 24" (610mm) power leads with:120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 24" (610mm) power leads with:240VAC: Bare wire connection
You May Also Need
Q & A's
Questions & Answers about Heavy Insulated Heating Tape 240v 1672w 3.25 8 ft
Free Shipping
- Question: " Are The Controllers and Heating Tapes Sold Together or Separately?" Mickey M.
- Answer: "Yes Both, Items Labled Bundle includes the Controller and Heat Tape?
Ask a question about Heavy Insulated Heating Tape 240v 1672w 3.25 8 ft
