Description

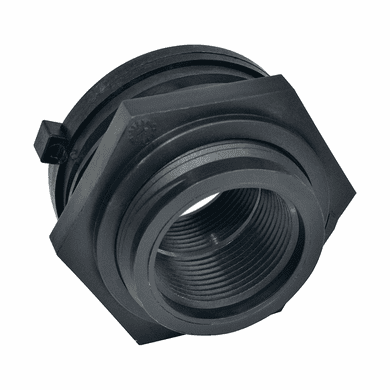

Heavy Duty Bulkhead Fitting 3/4" for Water Barrels, Rain Barrels, Plastic Drums and Barrels, and other heavy-duty applications where strength and durability are a necessity.
This Polypropylene 3/4" Bulk Head Fitting has 2 EPDM Gasket, for a secure safe inlet for your faucet on a sidewall of a container.
Installing Pipe Connectors, spigots, Valves, Faucets in Plastic Barrels, Plastic Drums, Plastic Rainwater Barrels, Rain Barrels, and Rain Water Drums and Barrels.
Features: For use with tanks having a wall thickness of 1/16" to 1/2". External thread and nut are left-hand threads. Polypropylene body & nut
EPDM gasket
Dimensions: 1.375" Hole size x 3.88" L x 2.38" W
Meets FDA standards
When installed in a tank these Polypropylene Tank Fittings add an FNPT connection for attaching tube fitting, spigots, valves, and more. To Install: Cut a hole in the tank wall with a hole saw or sharp blade, insert fitting (should fit loosely), thread on, and tighten the nut. We can install fittings in your tank or container in the position you designate, or you can buy them loose. Maximum Temperature: Polypropylene: 34°F - 140°F. Gasket meets FDA standards. Polypropylene meets NSF 61 requirements.
Features: For use with tanks having a wall thickness of 1/16" to 1/2". External thread and nut are left-hand threads.
When installed in a tank these Polypropylene Tank Fittings add an FNPT connection for attaching tube fitting, spigots, valves, and more. To Install: Cut a hole in the tank wall with a hole saw or sharp blade, insert fitting (should fit loosely), thread on, and tighten the nut. We can install fittings in your tank or container in the position you designate, or you can buy them loose. Maximum Temperature: Polypropylene: 34°F - 140°F. Gasket meets FDA standards. Polypropylene meets NSF 61 requirements.
Specifications
- MaterialMade of FDA Approved PVC with Santoprene Gastkets
- Maximum pressure: 150 psi
- PVC temperature range: 34°F to 140°F
- Color: Dark Grey with Black Gaskets
- Structure: Outside Dimensions 1 1/4"; Inside Dimensions 3/4" NPT
Q & A's
Questions & Answers about Heavy Duty Bulkhead Fitting For 3/4" Polypropylene Faucet
Ask a question about Heavy Duty Bulkhead Fitting For 3/4" Polypropylene Faucet . Click here
Videos
Bulk Head Fitting Install
