Composite Curing Heating Blanket 120v 180w 6" x 6" Square Standard ACR Hot Bonder plug - “C” <br><font color="#008000" >Free Shipping</font>
Zoom

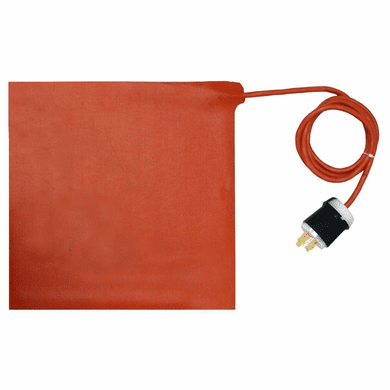

Composite Curing Heating Blanket 120v 180w 6" x 6" Square Standard ACR Hot Bonder plug - “C”
Free Shipping

Item Number# 8BHSR512006X06C
$185.15

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Videos
  • PDFs
  • Reviews

Description

120v | 180w | 6" x 6" (152 mm x 152 mm) Square | Standard ACR Hot Bonder plug - “C” BriskHeat Composite Curing Heating Blankets are ideal for composite repair and fabrication:

Can be used on horizontal surfaces, vertical surfaces, and on complex contoured surfaces without removing the damaged section.

Specifications

  • Highly flexible: 1/4" (6mm) bend radius
  • Smooth surface against repair
  • Multi-stranded heating element is uniformly placed to maximize heat distribution
  • Power density: 5 watts / in2 (0.008 watts / mm2)
  • Maximum exposure temperature: 450°F (232°C)
  • Heating element is laminated between two layers of 66 mil thick non-reinforced silicone rubber
  • Resistant:Moisture, chemical, and radiation
  • Strain relief built through entire edge of blanket for increased durability
  • Dielectric strength: Over 2000 volts
  • Choice of voltage: 120VAC or 240VAC
  • Power cord is 6 feet (1.8m) long with a standard ACR Hot Bonder compatible plug (NEMA L15-30).
