Description
120v | 312w | 1.00 in (25 mm) | 2 ft (0.6 m) This product requires a temperature controller for safe operation

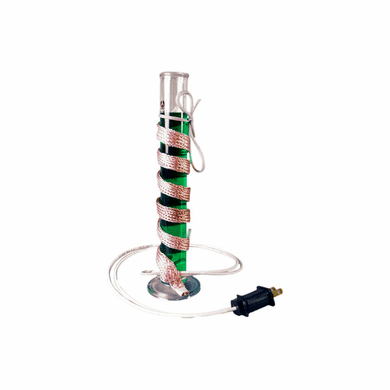

- Dual-element high-temperature Samox® heating tape with maximum exposure temperatures up to 1400°F (760°C).
- Dual-element multi-stranded resistance wire heating element provides maximum flexibility and durability.
- Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in 2-prong (NEMA1-15) molded plug design easily connects to your choice of temperature controlling device
Specifications
- Maximum exposure temperature: 1400°F (760°C)
- Construction:Samox® knit and braided heating element
- Construction:Samox® knit and braided outer sheath
- Power density:13.1 W/in2 (0.020 W/mm2 )
- 24" (610mm) power leads with:120VAC: Standard 2-prong molded plug (NEMA 1-15)
- 24" (610mm) power leads with240VAC: Bare wire connection
