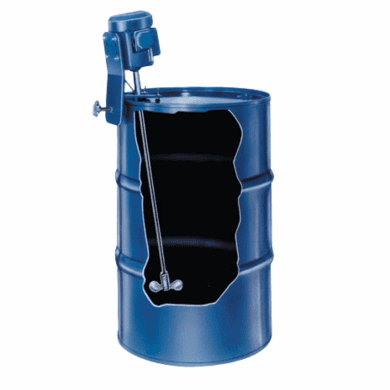

Explosion Proof Motor - Bung-Entering Drum Mixers ,1/2 hp,screw-in
Zoom

Explosion Proof Motor - Bung-Entering Drum Mixers ,1/2 hp,screw-in

Item Number# 8E3-1
$1,798.98

  • Description
  • You May Also Need
  • Q&As
  • Reviews

Description

  • For thin liquids in closed-head drums
  • 316 stainless steel shaft and propeller
  • Choice of motors and mounting styles

    Unique folding propeller slips through 2" bung opening, opens to 3-3/4" diameter.

    E-Series Mixers screw directly into the bung, 29" long x 5/8" diameter shaft.

    F-Series Mixers clamp securely to the drum chime with built-in tightening knob. 32" long x 5/8" diameter shaft angles toward center of drum. Electric motorsdo not include a cord or plug, must be wired according to local codes and standards.

    TEFC Motor (Totally Enclosed Fan Cooled) 1-Phase 115/230V. Also available in 3-Phase 230/460V.

    EP Motor (Explosion Proof)Class 1, Group D, 1-Phase 115/230V. Also available in 3-Phase 230/460V.

    Air Motor develops 1/4 HP using 10 CFM @ 20 PSI, 1/2 HP using 20 CFM @ 40 PSI. 0-2000 RPM.

    Features:
    HP: 1/2
    Mount: Screw-In
    Motor Type.: EP
    RPM: 1725
    Wt. (lbs.): 55
