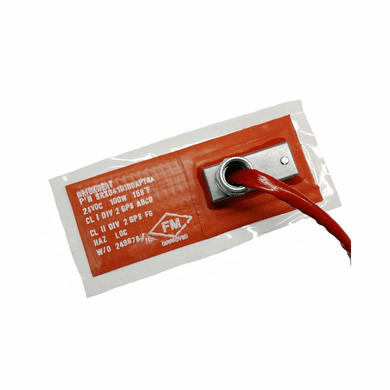

6" x 12" - Hazardous Area Rated Silicone Rubber Heating Blanket 120v 180w 6 12 T3 No PSA
Free Shipping

Item Number# 8BHSRX06121801T3
$297.85

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

120v | 180w | 6 in (152 mm) | 12 in (305 mm) | T3 | No PSA
  • Hazardous-area approved silicone rubber heating blankets for electrical surface heating in hazardous locations.
  • Low profile heater design is ideal for heating surfaces like tanks, hoppers, conveyors, silos, etc.
  • Silicone rubber provides exceptional durability and longevity.
  • Moisture, chemical and radiation resistant.
  • Heavy duty, extra thick silicone rubber provides exceptional durability and longevity.
  • Available with industrial strength pressure sensitive adhesive backing for easy installation (see ordering options).
  • Patented grounded heating element for your safety meets NEC 427.23
  • Heating element is laminated between 4 layers of heavy duty fiberglass reinforced silicone rubber; two layers of 23mil and two layers of 25mil fiberglass reinforced silicone rubber.
  • Built-in high-limit thermostat designed to keep blanket below NEC article 500 T-Rating (see ordering options).
  • Specifications

    • Power density: 2.5 W/in² (0.004 W/mm²)
    • Minimum exposure temperature: -60°F (-51°C)
    • Maximum exposure temperature: 400°F (204°C)
    • Dielectric strength: Over 2000 volts
    • Nominal silicone density: 26oz/yd² (881g/m²) per layer
    • Electrical power leads: 12" (305mm) standard length with bare wire leads
    • Voltage options: single phase 120, 240VAC
    • Temperature controller: required
    • Connection FittingFemale 3/4"-14 NPSM
