Description

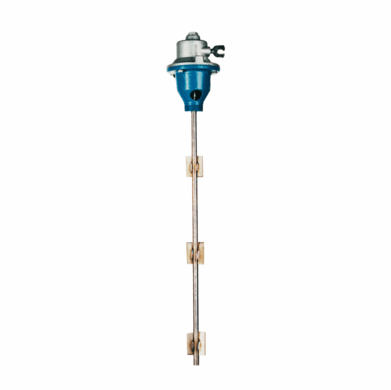

Special combination of propeller blades provides thorough mixing of extremely viscous liquids. Triple propeller shaft enters through and screws into 2" NPS bung opening.
NOTE: No cord or plug supplied on electric motors.. Must be wired according to local electrical codes and standards.
H-Series Mixers handle viscosities up to 8,000 cps, have three 2-blade props.
HGS-series mixers handle viscosities up to 32,000 cps have three two-blade fixed props and one 3 3/4 " folding prop, gear drive 430 rpm motor.
Motor Types: TEFC motor (Totally Enclosed Fan Cooled), 1725 rpm, single-phase 115/230 volt.
Explosion proof motor (Class1, Group D), 1725 rpm, single-phase 115/230 volt.
Air Motors (1/4 hp with 10 cfm @ 20 psi, 1/2 hp with 20 cfm @ 40 psi) and (3/4 hp with 30 cfm @ 25 psi, 1hp with 40 cfm @ 35 psi). Air motors deliver 0-2000 RPM.
Features:
Max.
Viscosity (CPS).: 24000
Motor Description: 3/4 HP EP
Wt. (lbs.): 75
