Description
240v | 620w | 0.50 in (13 mm) | 8 ft (2.4 m)

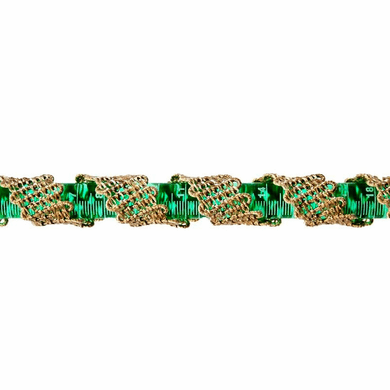

BriskHeat High Temperature Standard Insulated Heating Tapes (BW0) are Samox® heating tapes with maximum exposure temperatures up to 1400°F (760°C).
BriskHeat High Temperature Standard Insulated Heating Tapes (BW0) are Samox® heating tapes with maximum exposure temperatures up to 1400°F (760°C).
- High-temperature Samox® heating tape with maximum exposure temperatures up to 1400°F (760°C).
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, and more.
- Safe for use with glass and non-electrically conductive surfaces only.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
Specifications
- Maximum exposure temperature: 1400°F (760°C)
- Construction:Samox® knit and braided heating element
- Power density:Standard: 13.1 W/in2 (0.020 W/mm2 )
- 24" (610mm) power leads with:120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 24" (610mm) power leads with:240VAC: Bare wire connection
