INSUL-LOCK DS Flexible Closed Cell Pipe Insulation 3-1/2 <br><font color="#008000" >Free Shipping</font>
Zoom

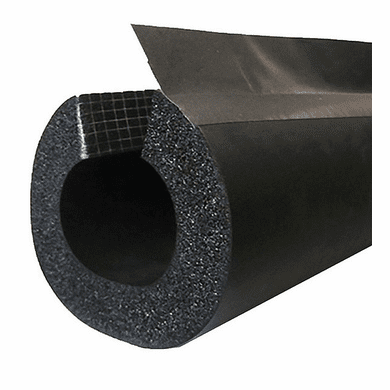

INSUL-LOCK DS Flexible Closed Cell Pipe Insulation 3-1/2
Free Shipping

Item Number# 8BHINSUL312
Buy More, Save More!
QuantityPrice Each
1 - 9 pieces$71.98 ea.
10+ pieces$69.98 ea.

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

4-1/8 in (104 mm) BriskHeat INSUL-LOCK DS (Double Seal) is an Easy-to-install, 6.0ft (1.8m) in length, pipe insulation with locking adhesive flapping.

This mold and mildew resistant pipe insulation is an environmentally friendly foam pipe tube wrap; used to prevent condensation and water pipe freeze protection.

TIP: Combine with Self-Regulating Heating Cable to maintain temperature while warming water pipes to prevent freeze.

  • Easy-to-install with locking adhesive flap
  • Double-seal technology
  • Built in pressure sensitive adhesive seam ensures maximum thermal efficiency
  • Built-in PVC overlap tape with acrylic adhesive provides environmental protection
  • Scrim reinforcement on the seam surface
  • Environmental-friendly, CFC-free, flexible elastomeric thermal insulation
  • Mold and mildew resistant non-porous, fiber-free foam insulation
  • Resistant to moisture vapor flow
  • Compatible with a variety of heating cable and heating tapes


Pipe Insulation Applications:
  1. Pipe & tube insulation for self-regulating heating cable.
  2. Pipe Freeze protection
  3. Pipe Insulation Wrap
  4. Water pipe freeze protection
  5. Pipe insulation; Pipe condensation prevention
  6. Air conditioning
  7. Cold water
  8. Refrigeration
  9. Duct wrap
  10. Hot water
  11. HVAC/R and plumbing
  12. Condensation prevention for refrigerant lines, cold water plumbing, roof drains, chilled water sy systems, and more.

Specifications

  • Operating temperature range: -70°F (-57°C) to 220°F (104°C)
  • R-Value: 3
  • Color: Black
  • Length: 6.0ft (1.8m)
  • Thickness: 0.5" (13mm)
  • Density: 3 to 6 PCF
  • Water vapor permeability:Dry cup (Elastomeric insulation): 0.03 permeation per inch
  • Water vapor permeability:Wet cup (Glued seam with overlap): 0.12 permeation per inch
  • Water absorption % (Volume change): 0

Q & A's

Questions & Answers about INSUL-LOCK DS Flexible Closed Cell Pipe Insulation 3-1/2
Free Shipping

Question: "What is self-regulating cable?"
Answer: "Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing, and much more."
Question: "What is a Class I/Division 1 environment?"
Answer: "Class I/Division 1 is an environment in which ignitable concentrations of flammable gases or vapors may exist under normal operating conditions, uring repair and maintenance, or where faulty equipment might release these flammable gasses or vapors."
Question: "Where do I find Class I /Division 1 environments?"
Answer: "Common industries include Oil, Hydrocarbon & Gas Exploration and Refining, Chemical Manufacturing/Processing, Paint Production, Mining, Coal Processing, and many more."
Question: "How much heat does selfregulating cable generate?"
Answer:Depending upon model and wattage, heat output can vary greatly. Maximum operating temperatures range from 150°F to 392°F (65°C to 120°C), but because of the selfregulating design, actual temperatures are normally much lower.
Question: "What is the maximum allowable circuit length?"
Answer: "Depending on wattage, voltage, and circuit capacity, circuit lengths can range from 32 ft to 660 ft."
Question: "How do I select the best heating cable for my application?"
Answer: "BriskHeat provides, at no charge, a full-service heat-loss calculation and engineering support to make a recommendation based on the specifications of your application."
Question: "Do I need to insulate over the cable?"
Answer: "Yes, insulation is always recommended to maximize thermal performance and efficiency."
Question: "What insulation should I use with Self-Regulating heating cable?"
Answer:"Depending on the application, BriskHeat offers two types of insulation; Insul-Lock pre-formed foam insulation for pipe, and Silver-Series cloth insulators for pipe, valves, flanges, etc., as well as custom designed insulators. Contact BriskHeat to determine which best fits your requirements."
