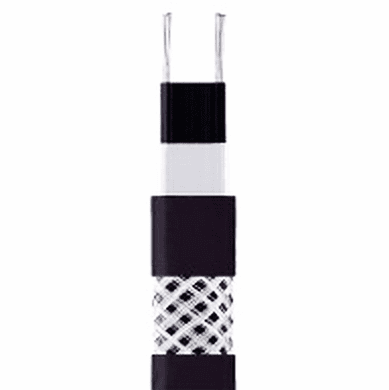

Cut-to-Length (Per Foot) Low Temperature Self-Regulating Heating Cable 208-277v 12 W/ft Tinned Copper Metal Braid
Free Shipping
 Low Temperature Self-Regulating Heating Cable 208-277v 12 W/ft Tinned Copper Metal Braid <br><font color="#008000" >Free Shipping</font> "Pin It")
- Description
- Specs
- You May Also Need
- Q&As
- PDFs
- Reviews
Description
Cut-to-Length (Per Foot) Low Temperature Self-Regulating Heating Cable 208-277v | 12 W/ft (40 W/m) | Tinned Copper Metal Braid
Tinned Copper Metal Braid Cut-to-Length Self-Regulating Heating Cable (SLCBL) is ideal for freeze protection and low temperature process maintenance up to 149?F (65?C). Self-Regulating Heat trace cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required
Tinned Copper Metal Braid Cut-to-Length Self-Regulating Heating Cable (SLCBL) is ideal for freeze protection and low temperature process maintenance up to 149?F (65?C). Self-Regulating Heat trace cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required
- If a specific process temperature is required a temperature controller is necessary.
- Suitable for extreme cold conditions as low as -40°F (-40°C).
- Safe for indoor and outdoor use.
- Safe to overlap heating cable for easy installation.
- Safe to insulate. Use with Insul-Lock° DS foam insulation for maximum thermal efficiency.
- TIP: Select the desired cable below; adding to Cart the number of feet required.
Specifications
- Maximum continuous maintenance temperature:149°F (65°C)
- Maximum intermittent exposure temperature: 185°F (85°C)
- Minimum intermittent exposure temperature: -40°F (-40°C)
- Nominal power output at 50°F (10°C): 3, 5, 8, 10, 12 W/ft (10, 17, 25, 31, 40 W/m)
- Supply voltages (AC): 110-120V or 208-277V
- Resistants:Moisture, chemical, and flame
- Bus wire gauge: 16 AWG
- Braid resistance: Tinned copper 0.0055 ohms/ft (0.0182 ohms/m)
- T Ratings: T6: 3, 5, 8, 10 W/ft (10, 17, 25, 31 W/m); T5: 12 W/ft (40 W/m)
- Locations:Ordinary
- Location:Hazardous
- Class: I Division 2 Groups A, B, C, D
- Class: II Division 2 Groups E, F, G
- Class: III
You May Also Need
$6.98, 100/$598.00, 1000/$4,980.00, 5000/$19,900.00
$7.98, 100/$698.00, 1000/$5,980.00, 5000/$24,900.00
$8.98, 100/$798.00, 1000/$6,980.00, 5000/$29,900.00, 100/$798.00, 1000/$6,980.00, 5000/$29,900.00
$6.98, 100/$598.00, 1000/$4,980.00, 5000/$19,900.00
$7.98, 100/$698.00, 1000/$5,980.00, 5000/$24,900.00
$8.98, 100/$798.00, 1000/$6,980.00, 5000/$29,900.00
Q & A's
Questions & Answers about Cut-to-Length (Per Foot) Low Temperature Self-Regulating Heating Cable 208-277v 12 W/ft Tinned Copper Metal Braid
Free Shipping
- Question: "What is self-regulating cable?"
- Answer: "Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing, and much more."
- Question: "What is a Class I/Division 1 environment?"
- Answer: "Class I/Division 1 is an environment in which ignitable concentrations of flammable gases or vapors may exist under normal operating conditions, uring repair and maintenance, or where faulty equipment might release these flammable gasses or vapors."
- Question: "Where do I find Class I /Division 1 environments?"
- Answer: "Common industries include Oil, Hydrocarbon & Gas Exploration and Refining, Chemical Manufacturing/Processing, Paint Production, Mining, Coal Processing, and many more."
- Question: "How much heat does selfregulating cable generate?"
- Answer:Depending upon model and wattage, heat output can vary greatly. Maximum operating temperatures range from 150°F to 392°F (65°C to 120°C), but because of the selfregulating design, actual temperatures are normally much lower.
- Question: "What is the maximum allowable circuit length?"
- Answer: "Depending on wattage, voltage, and circuit capacity, circuit lengths can range from 32 ft to 660 ft."
- Question: "How do I select the best heating cable for my application?"
- Answer: "BriskHeat provides, at no charge, a full-service heat-loss calculation and engineering support to make a recommendation based on the specifications of your application."
- Question: "Do I need to insulate over the cable?"
- Answer: "Yes, insulation is always recommended to maximize thermal performance and efficiency."
- Question: "What insulation should I use with Self-Regulating heating cable?"
- Answer:"Depending on the application, BriskHeat offers two types of insulation; Insul-Lock pre-formed foam insulation for pipe, and Silver-Series cloth insulators for pipe, valves, flanges, etc., as well as custom designed insulators. Contact BriskHeat to determine which best fits your requirements."
