SDX Digital PID Temperature Controller 240v | 6.4 x 9.5 x 2.6 | 230V 3-prong Schuko CEE 7/7 PT100/RTD <br><font color="#008000" >Free Shipping</font>
Zoom

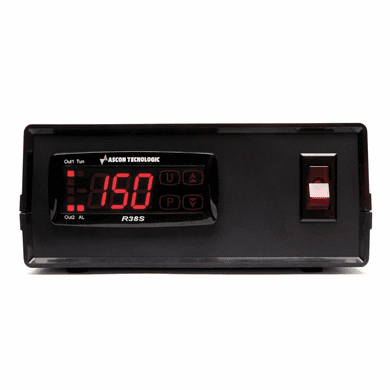

SDX Digital PID Temperature Controller 240v | 6.4 x 9.5 x 2.6 | 230V 3-prong Schuko CEE 7/7 PT100/RTD
Free Shipping

Item Number# 8BHSDXRD
$519.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

BriskHeat’s newest product, the SDX Digital PID Temperature Controller, is a cut above the competition.

This affordable, compact benchtop controller is ideal in a laboratory environment. Its smaller size makes it easy to move and set up wherever it’s needed. Universal voltage from 100 – 240 VAC with a 15 amp relay adds to the versatility.240v | 6.4 | 9.5 | 2.6 | 230v 3-prong Schuko CEE 7/7 | PT100/RTD

Specifications

  • Voltage: 100 – 240 VAC
  • Max. Amp Load: 15 Amp North America; 10 Amp Europe
  • Temperature Control Range: 0°F to 999°F and 0°C to 999°C
  • Temperature Display Units: °F and °C
  • Sensor, 5 ft (1.5 m) included: Type-J or Type-K Thermocouple, or PT100-RTD
  • Accuracy: +/-0.5% span +/- 1 digit at 77°F (25°C)
  • Alarms: Audible; Programmable for high or low absolute, or deviation
  • Input Power Cord/Connections: 79 in (2 m) long with input power plug based on model
  • Output Power Cord/Connection: C13 receptacle with mating C14 plug
  • Special Features: Digital PID with Autotuning
    • Environmental Exposures:
  • Operating range: 32°F to 111°F (0°C to 44°C)
  • Storage range:-4°F to 158°F (-20°C to 70°C)
  • Relative humidity: < 95% non-condensing temperatures
  • Enclosure Dimensions:6.4 in x 2.6 in x 9.5 in
  • Enclosure Rating/Classification Designation:NEMA1; IP30
