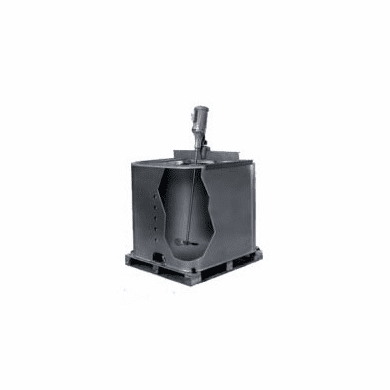

Standard Mixer, Clamp Mount - Bulk Container Mixers 1/2 Hp TEFC Motor

Heavy duty cast housings (DT series-cast aluminum, HGL & RAB series - cast iron), precision cut gears, and grease-filled bearings run in grease for quiet, reliable operation. Unique folding prop fits through 2" opening, opens to 9" diameter for thorough mixing action.

Standard Mixers have in-line gearboxes, are designed for individual stand-alone containers. Low Profile Mixers have a right angle gearbox, are designed to sandwich between stacked containers.

Low Profile Mixers have a right angle gearbox, are designed to sandwich between stacked containers.

Screw-In Mount fits 2" NPS opening.

Clamp Mount is designed to clamp directly to the DTS or Model DTA Universal Brackets (sold separately).

Bracket Mount is designed to bolt on RGT custom bracket (sold separately).

Cap Mount adapts to most IBC plastic caps. Requires drilling 4 holes in cap to attach a 2-piece stainless steel gasketed bulkhead fitting (cap not included).

Motor Types: TEFC (Totally Enclosed Fan Cooled), EP (Explosion-Proof TEFC, Class 1, Group D) and Air Motor (30 – 40 CFM @ 25 – 35 PSI).

Features:
Ht. Above Mount: 20"
HP: 1/2
Motor Type: TEFC
Mount: Clamp
RPM: 350
Shaft Dia. x L: 3/4" x 43 1/2"
Wt.: 60 lb.
