Hand Pump Steel Quart Stroke Pump | 15-55 Gallon Drum Pump | 2-Year Limited Warranty
Features:Free Shipping
2" NPS bung openings. Padlockable handle.
Description: Quart/Liter Pump
Tube: Steel
Weight: 13 lbs.

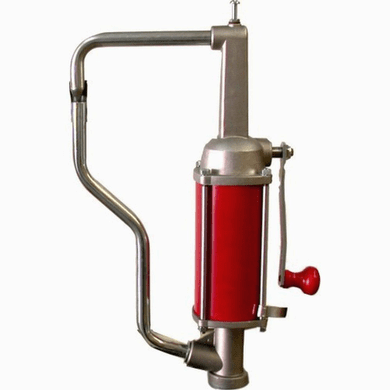

Steel Quart/Liter Stroke Pumps
Not for Flammable Liquids, Water, or Corrosive Liquids
Threads directly into 2" drum bung opening Use with petroleum products and non-corrosive liquids Adjust the calibration screw at the top of the pump to dispense by quart or liter. Revolve handle once to fill the chamber with fluid.
Swing the return tube out of the way and align your vessel under the spout. Revolve handle again, once, to dispense liquid. Remove your vessel and the return tube will swing back to its home position under the spout where it collects drips and automatically returns them to the drum.
Made of Steel with a Delrin® piston and Viton seals, this reliable pump comes with a telescoping Steel suction tube tube that adjusts from 22' - 40" to fit 15 - 55-gallon drums with
Features:
Threads directly into 2" drum bung opening Use with petroleum products and non-corrosive liquids Adjust the calibration screw at the top of the pump to dispense by quart or liter. Revolve handle once to fill the chamber with fluid.
Swing the return tube out of the way and align your vessel under the spout. Revolve handle again, once, to dispense liquid. Remove your vessel and the return tube will swing back to its home position under the spout where it collects drips and automatically returns them to the drum.
Made of Steel with a Delrin® piston and Viton seals, this reliable pump comes with a telescoping Steel suction tube tube that adjusts from 22' - 40" to fit 15 - 55-gallon drums with
Specifications
- CONTAINER SIZE: 15 to 55 Gallon
- BUNG SIZE: 2" NPT
- DELIVERY: 1-quart per cycle
- LOCKABLE CRANK ARM: Yes
- SUCTION TUBE: Steel Telescoping
- SEALS: Delrin
You May Also Need
Q & A's
Questions & Answers about Hand Pump Steel Quart Stroke Pump | 15-55 Gallon Drum Pump | 2-Year Limited Warranty | Free Shipping
- Question: Is The Crank Arm Lockable
- Answer: Yes
