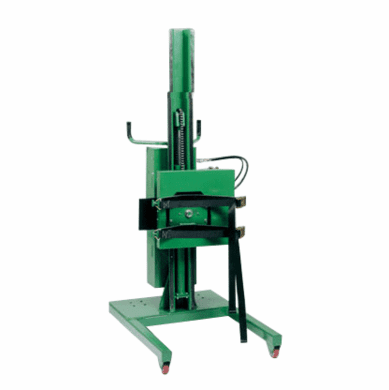

Straddle Model, Air, 71" lift Roto-Lift Multi Drum Handlers

Roto-Lift™ multi-purpose drum handlers are ideal for transporting, stacking, and controlled pouring. Two ratchet belt tighteners and nylon belts hold drum securely. Worm-gear rotating mechanism holds drum at any desired angle. Welded steel frame has single post design for maximum operator visibility. Battery Powered Unit lifts drum at 17 feet per minute. Uses standard 12 volt DC deep-cycle battery (included). Built-in charger plugs into standard 110 VAC grounded outlet. Batteries are included. Air Powered Unit lifts drum at 17 feet per minute, uses 50 CFM @ 80 psi. Supplied with filter, regulator and lubricator. Manual Unit has
foot-operated hydraulic pump and hand crank tilting. Lifts drum at 5 feet per minute. Unit has 25 1/2" long legs, 24 3/4" between legs. Rolls on 3" diameter polyurethane front wheels and 4" diameter swivel rear casters. 44" turning radius. Frame requires 6" underclearance. Counterweight Frame Models require no under clearance and allow pallet unloading and drum transport and dumping in close quarters. Supplied with (34) 13.5 lb. counter weights. Rolls on 5" diameter polyurethane front wheels and 4 1/2" diameter swivel rear casters. 61 1/4" turning radius. Note: Counterweight models weigh twice as much as straddle models and require much more effort to position and propel. Optional steel-It or stainless steel units are available for food and/or pharmaceutical applications.

Features:
Dim. H x W x L (in.): 90 x 30 x 42 1/2
Max. Lift Ht. (in.): 71
Power: Air
Wt.: 508 lbs.
