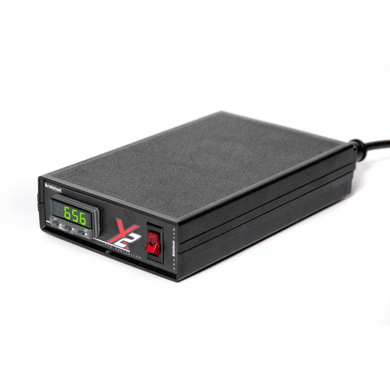

X2 Digital PID Benchtop Temperature Controller 120v K-Type |Includes Heater Adapter Cord | No Stand Clamp | <br><font color="#008000" >Free Shipping</font>
Zoom

X2 Digital PID Benchtop Temperature Controller 120v K-Type |Includes Heater Adapter Cord | No Stand Clamp |
Free Shipping

Item Number# 8BHX2-120KTP
$741.75

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

120v|K-Type|Includes Heater Adapter Cord|No Stand Clamp|BriskHeat® X2 Benchtop PID Digital Temperature Controller is designed for general purpose use in indoor environments to control temperatures on applications requiring automatic control. The controller provides a simple three-key user control and a plug-and-play set-up.

Specifications

    Power:
  • Input Voltage: 100- 240VAC, 50-60Hz, 3VA (nominal), +/-10% maximum humidity
  • Amp Capacity: 15 Amps
  • 6 foot (1.8m) input power cord:120VAC Standard 3-Prong Plug (NEMA 5-15)
  • 6 foot (1.8m) input power cord:240VAC Standard 3-Prong Plug (NEMA 6-15)
  • Heater output receptacle: 3-prong AMP Mate-N-Lock
  • Operating Voltage:100-130VAC, 50 to 60hz, +/-10% maximum permitted fluctuation
  • Operating Voltage:200-240VAC, 50 to 60hz, +/-10% maximum permitted fluctuation

    • For Controllers with Stand Clamps:
  • Mounts to poles 0.75" (18mm) diameter or less
  • Programmable in either °C or °F (Default set point is 0°C).
  • PID Control, automatic tuning of PID parameters
  • Simple three-key user control
  • User Programmable alarm types including latching options
  • Programmable security lock levels
  • Fused input
  • Sensor break protection with average output option which allows process to continue heating
  • Auto / manual control ability
