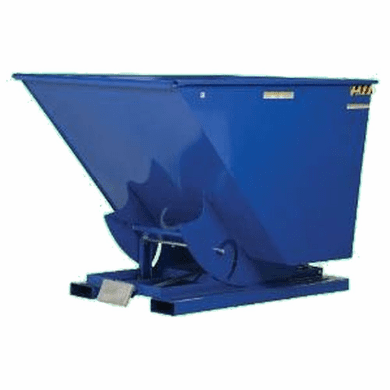

70 Degree Self-Dumping Steel Hoppers Heavy Duty Hopper

70 Degree Self-Dumping Steel Hoppers Heavy Duty Hopper

When the bumper release touches the dumpster's side, the hopper drops at an angle of 70 degrees. When the hopper is finished emptying, it will immediately stand back up in a secured position. There's also a cord that can be pulled to manually empty the hopper, and it's all controlled from within the forklift's cab. The hopper may be locked onto the fork truck with the included chain.... The fork compartments measure 7-1/2" wide by 2-1/2" high and are spaced 28" apart. Robo-welding ensures a watertight seal throughout construction. A surface coating of powder....

Light duty, medium duty, and heavy duty models

Automatically dumps and returns to upright position

Also includes a spring loaded cable for manual dumping

Hopper automatically dumps at a 70° angle when the bumper release makes contact with the side of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A locking chain is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2" H set at 28" on center. Constructed with robotic welds for a leak proof design. Powder coated finish.

Features:
1. Capacity Cu. Yds/lbs: 3 / 6,000
2. Description: Heavy duty hopper
3. Gauge Steel: 8
4. Overall Dim. W x D x H (in.): 81-3/4 x 69 x 52
5. Wt. (lbs.): 1059.
