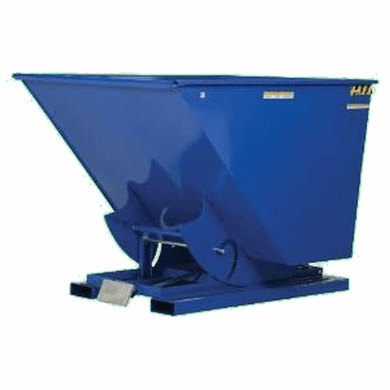

70 Degree Self-Dumping Steel Hoppers Light duty hopper

70 Degree Self-Dumping Steel Hoppers Light duty hopper

This light duty hopper is constructed with 12 gauge steel for a robust and leak-proof design, with a powder coated finish. It holds up to 2 cubic yards or 2,000 pounds,... is 56-1/2" wide by 69" deep by 52" high, weighing 877 pounds. It automatically dumps at a 70° angle when the bumper release makes contact with the side of the dumpster, and returns to an upright and locked position afterwards. It also includes a spring loaded cable for manual dumping and a locking chain to secure the hopper to the fork truck. The usable fork pockets measure 7-1/2"W x 2-1/2"H and are set at 28" on center.

Light duty model

Automatically dumps and returns to upright position

Also includes a spring loaded cable for manual dumping

Hopper automatically dumps at a 70° angle when the bumper release makes contact with the side of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A locking chain is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2" H set at 28" on center. Constructed with robotic welds for a leak proof design. Powder coated finish.

Features:
1. Capacity Cu. Yds/lbs: 2 / 2,000
2. Description: Light duty hopper
3. Gauge Steel: 12
4. Overall Dim. W x D x H (in.): 56-1/2 x 69 x 52
5. Wt. (lbs.): 877.

When the bumper release touches the dumpster's side, the hopper drops at an angle of 70 degrees. Following a dump, the hopper will immediately correct itself and lock into place. Includes a cable that may be pulled to manually empty the hopper from within the cab of the forklift. The hopper may be locked onto the fork truck using the included chain. Fork compartments measure 7-1/2" wide by 2-1/2" high and are spaced 28" apart. With robotic welding, this structure cannot leak. A surface coating of powder.
