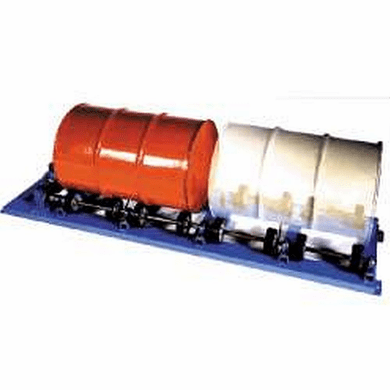

Dual Drum, Fixed Speed, Air - Heavy-Duty Drum Rotator
Zoom

Dual Drum, Fixed Speed, Air - Heavy-Duty Drum Rotator

Item Number# 82-5154A
$3,488.88
$4,699.95
(You Save 26%)

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • Reviews

Description

  • Handles 30 gallon and 55 gallon drums up to 1,000 lbs
  • One-drum and two-drum models

    Heavy-duty drum rotator gently mixes dry and liquid materials thoroughly and efficiently. Four 6" diameter neoprene drive wheels and four 6" diameter neoprene idler wheels provide positive support. Solid 1" diameter drive shaft turns on ball bearings for low maintenance, long life. Factory-set gear reducer provides fixed speed 10, 20, or 30 RPM*.

    Liquid load capacity per drum: 1,000 lb.

    Dry load capacity per drum: 400 lb. @ 10 RPM, 300 lb. @ 20 RPM, 250 lb. @ 30 RPM.

    Variable Speed Model rotates drums at any desired speed between 10 and 40 RPM. Has easy-to-use hand control knob.

    TEFC Motor (Totally Enclosed Fan Cooled) is 230/460V, 3-Phase.

    EP Motor (Explosion-Proof TEFC) is 230/460V, 3-Phase rated for Class 1, Group D and Class 2, Groups F and G.

    Air Motor is 1 HP, uses 40 CFM @ 40 – 60 PSI.

    Optional Idler Attachment accepts 5 gallon pails.

    Features:
    RPM: 20 (standard)
    Bin Dim. D x W x H: 24" X 94"
    HP: 1
    Motor: Air
    Speed: Fixed
    Description: Dual drum rotator
    Wt.: 439 lb.

    • Heavy-duty double drum rotator gently mixes liquids or dry materials thoroughly and efficiently either through variable speed rollers or fixed speed rollers. It is designed to rotate one or two drums at a time. Each roller has four 6 inch diameter neoprene drive wheels and four 6 inch diameter neoprene idler wheels to provide positive support. It operates on a 1 HP, air motor (uses 40 CFM @ 40psi). Optional Idler attachment to handle 1 – 5 gallon pails is available (SKU 5-5154-2). Standard speed is factory preset at 20 RPM and will be supplied unless otherwise specified.

    The capacity, per drum, for liquid is 1000 lb and for dry product it is 300 lb. A shifting dry load exerts greater stress on the drum roller than the fluid motion of a liquid load. This drum roller handles steel drums 6 inch–28 inch diameter, up to 40 inches tall.

    Ensures consistency Eliminates spills, transfer time and clean-up

    Made in the USA

    Specifications

    • Description: Dual drum rotator
    • HP: 1
    • MotorDescription: Air
    • Wt.: 439 lb
    • Length: 94"
    • Width: 24"
    • Height : 17"

    Q & A's

    Questions & Answers about Dual Drum, Fixed Speed, Air - Heavy-Duty Drum Rotator

    Question: What Sized Drum does it hold. Jim B.
    Answer:30 to 55 Gallon

    Ask a question about Dual Drum, Fixed Speed, Air - Heavy-Duty Drum Rotator. Click here
