Enclosure Heaters Silicone Rubber 60w 2.5" x 6" 110°F to 140°F
Free Shipping

Description
Specs
You May Also Need
Q&As
Reviews

Description

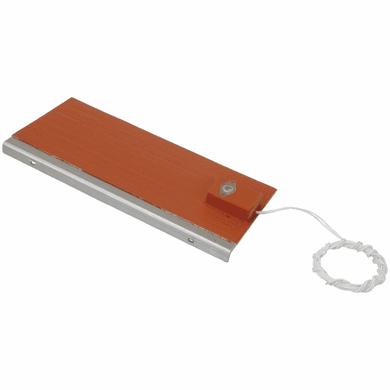

Economy-Series - Silicone Rubber Heating Blanket60w | 2.5" x 6" (64 mm x 152 mm) | 110°F to 140°F (43°C to 60°C) BriskHeat Silicone Rubber (TSREH) Enclosure Heaters Prevent condensation or freezing of electronics inside enclosures and panels. Select from available configuration options below of both 2.5" x 12" and 2.5" x 6" enclosure heaters, with and without built-in Thermostat controls. Panel heater provides protection to your valuable electronics with a simple heating solution!

Specifications

Operating voltage: 120VAC (other voltages available upon request)
Leads: 48" PFA extruded leads
Aluminum mounting plate has two mounting slots that are 1/4� by 5/32� centered in a 1/2� flange for mounting
Minimum exposure temperature: -70�
Maximum exposure temperature: 392°F
Bracket material: Aluminum
Bracket thickness: 0.090"
Overall thickness (heater and bracket): 0.140" (3.6mm) nominal
Mounting hole size: 1/4" x 5/32� (6mm x 4mm)
Mounting hole position on flange:6� Heater: centered on a 1/2" flange 4 � apart.
Mounting hole position on flange:12� Heater: centered on a 1/2� flange 9� apart.
