Description
120v | 170w | 8 ft (2.4 m)

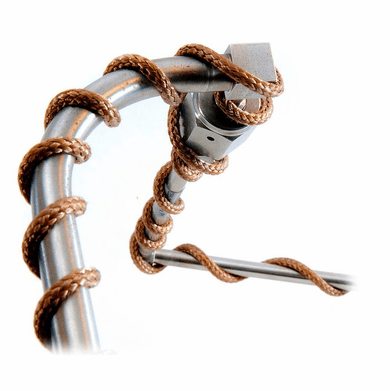

HTC Heating Cords are Extremely flexible heating cord used to provide accurate heat when you need it; Can be wrapped around objects as small as 1/8" (3mm) diameter to heat small tubes or other applications where space is limited.
HTC Heating Cords are Extremely flexible heating cord used to provide accurate heat when you need it; Can be wrapped around objects as small as 1/8" (3mm) diameter to heat small tubes or other applications where space is limited.
- Heating cords designed for use on small tubes, vessels, or any application where space is limited.
- Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.
- Rapid thermal response provides accurate heat when you need it.
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Choice of power leads on same end or opposite ends to suit your electrical needs.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling devic
Specifications
- Maximum exposure temperature: 900°F (482°C)
- Diameter: 3/16” (4.8mm)
- Construction: Double braided fiberglass outer sheath
- Power density: 21 watts/ft (68 watts/m)
- 24" (610mm) power leads with:120VAC: Separable 2-prong split-plug (NEMA 1-15)
- 24" (610mm) power leads with:240VAC: Crimped ferrule wire connection
- Suitable for electrically conductive surfaces
- Includes tie-downs for easy installation
You May Also Need
Q & A's
Questions & Answers about Heating cord (HTC) 120v 170w 8 ft
Free Shipping
- Question: Do You Have A Heating Tape Guide?. By Sandra E.
- Answer: Yes!, Please see PDFs listed on This Page.
