Heating cord (HTC) 120v 22w 1 ft
Free Shipping

Item Number# 8BHHTC451006
$72.98

  • Description
  • Specs
  • You May Also Need
  • Q&As
  • PDFs
  • Reviews

Description

120v | 22w | 1 ft (0.3 m) This product requires a temperature controller for safe operation

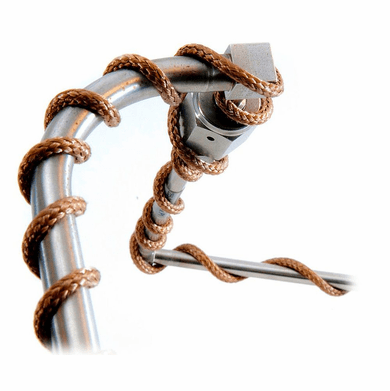

HTC Heating Cords are Extremely flexible heating cord used to provide accurate heat when you need it; Can be wrapped around objects as small as 1/8" (3mm) diameter to heat small tubes or other applications where space is limited.

  1. Heating cords designed for use on small tubes, vessels, or any application where space is limited.
  2. Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.
  3. Rapid thermal response provides accurate heat when you need it.
  4. Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  5. Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  6. Available in a wide variety of length and width configurations.
  7. Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
  8. Safe for use with glass and electrically conductive metal surfaces.
  9. Choice of power leads on same end or opposite ends to suit your electrical needs.
  10. Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
  11. Temperature controller is required for safe operation of this product.
  12. Built-in split-plug design easily connects to your choice of temperature controlling devic
HTC Heating Cords are Extremely flexible heating cord used to provide accurate heat when you need it; Can be wrapped around objects as small as 1/8" (3mm) diameter to heat small tubes or other applications where space is limited.

Specifications

  • Maximum exposure temperature: 900°F (482°C)
  • Diameter: 3/16” (4.8mm)
  • Construction: Double braided fiberglass outer sheath
  • Power density: 21 watts/ft (68 watts/m)
  • 24" (610mm) power leads with:120VAC: Separable 2-prong split-plug (NEMA 1-15)
  • 24" (610mm) power leads with:240VAC: Crimped ferrule wire connection
  • Suitable for electrically conductive surfaces
  • Includes tie-downs for easy installation

Q & A's

Questions & Answers about Heating cord (HTC) 120v 22w 1 ft
Free Shipping

Question: Do You Have A Heating Tape Guide?. By Sandra E.
Answer: Yes!, Please see PDFs listed on This Page.
