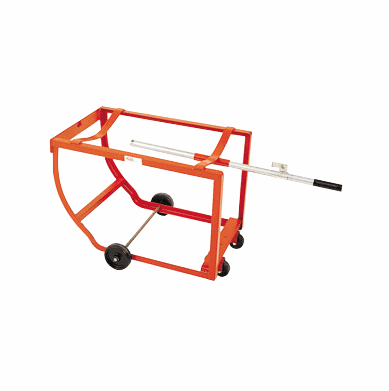

High Capacity Drum Cradle, 20 3/4" Drain Height
By hooking the drum on the chime hook and tipping the unit with the drum downward with the retractable zinc-plated tipping lever, one person can safely and easily tip and load a drum onto the cradle.
Handles steel drums weighing 30 and 55 gallons. A skid-resistant frame prevents slippage while loading. A lower chime hook is built into the drum to keep it from sliding off the 3" x 1 1/4" casters and the 5" x 1 1/2" chemical resistant polyolefin wheels. For stability, outboard front load wheels are used. Some assembly is required. Steel drums must be at least 29 inches tall and have a top rim/chime for the handle's chime hook to engage with the drum.
Handles 55 gallon steel drums
All double welded steel frame
1,000 lb. capacity
High capacity drum cradle with exclusive skid resister frame which eliminates slippage while loading. Nose plate has built-in lower chime hook to prevent sliding. Retractable zinc-plated tipping lever allows easy one-man drum tipping. Frame measures 30" L x 18" W x 20-1/4" H. Ships assembled. Note: Steel drums must be at least 29” H and have a top rim/chime for the chime hook on the handle to engage with the drum.
Features:Description: 20 3/4" drain height
Rear Swivel Casters: Two - 3" polyolefin
Wt. 39 lb
Front Load Wheels: Two - 5" polyolefin
DESCRIPTION Our high weight capacity drum cradle has polyolefin swivel casters for maneuverability and outboard polyolefin front load wheels for stability. Its 3 inch diameter x 1 1/4 inch wide polyolefin casters and 5 inch diameter x 1 1/2 inch wide polyolefin wheels are chemically resistant and the ideal choice for use on smooth floors where chemicals are present. This drum cradle features an exclusive skid resister frame that eliminates slippage while loading. The nose of the cradle has a built-in lower chime hook to prevent the drum from sliding off the cradle during loading. One person can safely and easily tip and load a drum onto the cradle by hooking the drum on the chime hook and tipping the unit with the drum downward with the retractable zinc-plated tipping lever. The skid-resistor frame helps eliminate the unit sliding away while loading making it one of the safest units of its kind. Overall 36 1/2 inch L x 22 inch W x 22 1/2 inch H Note: Steel drums must be at least 29 inch high and have a top rim/chime for the chime hook on the handle to engage with the drum.
Features
Call Our BayTec Customer Service Department At 800.560.2334 For More Information. Safe Shopping Guarantee
By hooking the drum on the chime hook and tipping the unit with the drum downward with the retractable zinc-plated tipping lever, one person can safely and easily tip and load a drum onto the cradle.
Handles steel drums weighing 30 and 55 gallons. A skid-resistant frame prevents slippage while loading. A lower chime hook is built into the drum to keep it from sliding off the 3" x 1 1/4" casters and the 5" x 1 1/2" chemical resistant polyolefin wheels. For stability, outboard front load wheels are used. Some assembly is required. Steel drums must be at least 29 inches tall and have a top rim/chime for the handle's chime hook to engage with the drum.
High capacity drum cradle with exclusive skid resister frame which eliminates slippage while loading. Nose plate has built-in lower chime hook to prevent sliding. Retractable zinc-plated tipping lever allows easy one-man drum tipping. Frame measures 30" L x 18" W x 20-1/4" H. Ships assembled. Note: Steel drums must be at least 29” H and have a top rim/chime for the chime hook on the handle to engage with the drum.
Features:
DESCRIPTION Our high weight capacity drum cradle has polyolefin swivel casters for maneuverability and outboard polyolefin front load wheels for stability. Its 3 inch diameter x 1 1/4 inch wide polyolefin casters and 5 inch diameter x 1 1/2 inch wide polyolefin wheels are chemically resistant and the ideal choice for use on smooth floors where chemicals are present. This drum cradle features an exclusive skid resister frame that eliminates slippage while loading. The nose of the cradle has a built-in lower chime hook to prevent the drum from sliding off the cradle during loading. One person can safely and easily tip and load a drum onto the cradle by hooking the drum on the chime hook and tipping the unit with the drum downward with the retractable zinc-plated tipping lever. The skid-resistor frame helps eliminate the unit sliding away while loading making it one of the safest units of its kind. Overall 36 1/2 inch L x 22 inch W x 22 1/2 inch H Note: Steel drums must be at least 29 inch high and have a top rim/chime for the chime hook on the handle to engage with the drum.
Features
- Capacity: 1000 lb
- Drain Ht.: 20 3/4"
- Wt.: 39 lb
- Wheel Size: 5"
- Wheel Type: Polyolefin
- Length: 36 1/2"
- Width: 22"
- Height : 22 1/2"
Call Our BayTec Customer Service Department At 800.560.2334 For More Information. Safe Shopping Guarantee
Specifications
- Brand MECO
- Length 36 1/2"
- Width 22"
- Height 22 1/2"
- Weight 39 lbs
- Assembly Required Requires Some Assembly
- Drain Height 20 3/4"
- Drum Size 30 Gallon, 55 Gallon
- Feature Wheels
