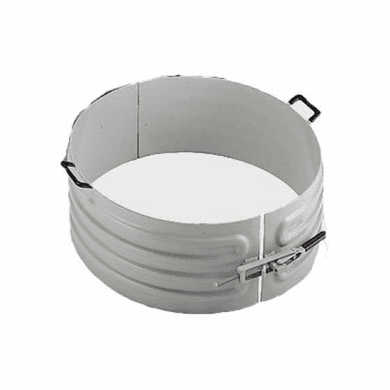

Zinc Metalized Steel, Heat or Cool 55 Gallon Drums, 1

Description
You May Also Need
Q&As
PDFs
Reviews

Description

Ideal for use in hazardous areas

Use with steam, water, hot oil, heat transfer liquids or refrigerant

Available in carbon steel or zinc metalized steel

Heater/Cooler units have embossed channels for steam, hot or cold water, or refrigerant*. All welded 18/16 gauge carbon steel construction with smooth inner panel for efficient heat transfer. Features quick acting toggle clamp for easy installation and removal and an insulated handle for safe handling. A single section unit will heat a 55 gallon steel closed drum from 60 degrees F to 160 degrees F in 4 hours using 150 psig steam. 1/2" IPS (iron pipe size) female inlet and outlet pipe couplings. Multi-section units are supplied already piped together. Hinged-Back Style has a continuous hinge at the back of the unit for easy installation and removal. Slip-Over Style has a continuous jacket that is designed to slip over the top of a container. Expandable opening at one end has a toggle style clamp to secure the unit in place. Drum Cradle Style is available in carbon steel only. It has a heavy steel pipe frame and three half sections of heating/cooling channels. Cradle unit will heat a closed, properly ventilated 55 gallon steel drum of water from 60 degrees F to 160 degrees F in approximately 2 1/2 hous using 150 psig steam. The cradle unit is equipped with a 3/4" MPT (male pipe thread) inlet and outlet. Immersion Style is designed to come in contact with the liquid it is to heat or cool by placing it directly into a 55 gallon drum. 3/4" MPT connections standard on units without hoses. Maximum operating steam pressure without the use of hoses is 250 psig and with 3/4" I.D. x 42" steam hoses, 200 psig working pressure at 380 degrees. Not available in zinc metalized steel. Hoses, if included, are steam hoses made of rubber with wire braid reinforcement. Carbon Steel Models have a light coating of oil on the exterior surface to help prevent rust. Zinc Metalized Steel Models have an exterior zinc coating for more substantial rust prevention. Stainless Steel Models are made of stainless steel plate coil.

Features:
Container Size: 55 gal.
Description: 1-sections
Weight: 23 lbs.

The plate coil drum warmer is designed for use with steam, hot water, hot oil, or high temperature heat transfer liquids. The Plate Coil is equally adaptable for cooling by using cold water or a refrigerant. This painted carbon steel unit has a Tranter Blue exterior, with a Thermaline® painted finish that offers excellent resistance to thermal shock and good weathering and color stability. This warmer is an external clamp on style unit. It has two plate coil panels hinged together for an expandable opening, and is secured in place with a quick acting toggle clamp. The The plate coil drum warmer is designed for use with steam, hot water, hot oil, or high temperature heat transfer liquids. The Plate Coil is equally adaptable for cooling by using cold water or a refrigerant. This painted carbon steel unit has a Tranter Blue exterior, with a Thermaline® painted finish that offers excellent resistance to thermal shock and good weathering and color stability. This warmer is an external clamp on style unit. It has two plate coil panels hinged together for an expandable opening, and is secured in place with a quick acting toggle clamp. The Plate Coil drum warmer is 18/16 gauge carbon steel with a smooth inner panel for efficient heat transfer. The Plate Coil warmer measures 22 3/4 inch diameter and 8 1/2 inches wide for use with a 55 gallon closed head steel drum. A single section unit will heat a 55 gallon steel closed drum from 60° F to 160° F in 4 hours using 150 psig steam. Ideal for use in hazardous areas Use with steam, water, hot oil, heat transfer liquids or refrigerant Maximum recommended operating pressure: 150 psig Note: If you need to use this unit with a 55 gallon open-head drum you must provide a manufacture spec sheet to assure proper fit. drum warmer is 18/16 gauge carbon steel with a smooth inner panel for efficient heat transfer. The Plate Coil warmer measures 22 3/4 inch diameter and 8 1/2 inches wide for use with a 55 gallon closed head steel drum. A single section unit will heat a 55 gallon steel closed drum from 60° F to 160° F in 4 hours using 150 psig steam. Ideal for use in hazardous areas Use with steam, water, hot oil, heat transfer liquids or refrigerant Maximum recommended operating pressure: 150 psig Note: If you need to use this unit with a 55 gallon open-head drum you must provide a manufacture spec sheet to assure proper fit.

SPECS

Container Size: 55 gallon

Description: Slip on style

Wt.: 23 lbs.
