Idler Attachment Only for 81-5154 Series - Heavy-Duty Drum Rotator
- Description
- You May Also Need
- Q&As
- Reviews
Description

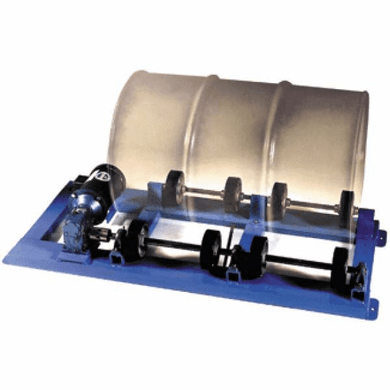

Heavy-duty drum rotator gently mixes dry and liquid materials thoroughly and efficiently. Four 6" diameter neoprene drive wheels and four 6" diameter neoprene idler wheels provide positive support. Solid 1" diameter drive shaft turns on ball bearings for low maintenance, long life. Factory-set gear reducer provides fixed speed 10, 20, or 30 RPM*.
Liquid load capacity per drum: 1,000 lb.
Dry load capacity per drum: 400 lb. @ 10 RPM, 300 lb. @ 20 RPM, 250 lb. @ 30 RPM.
Variable Speed Model rotates drums at any desired speed between 10 and 40 RPM. Has easy-to-use hand control knob.
TEFC Motor (Totally Enclosed Fan Cooled) is 230/460V, 3-Phase.
EP Motor (Explosion-Proof TEFC) is 230/460V, 3-Phase rated for Class 1, Group D and Class 2, Groups F and G.
Air Motor is 1 HP, uses 40 CFM @ 40 – 60 PSI.
Optional Idler Attachment accepts 5 gallon pails.
Features:
Description: Idler attachment for 81-5154. Handles single 5 gallon pail.
Wt.:
12 lb.
Optional Idler Attachment accepts 1 to 5 gallon pails. Install one idler attachment for each drum position where you want to roll a pail. It is easily removed to return to rolling drums. This attachment only fits Heavy Duty Drum Rotator (SKU 8-5154, 81-5154EX, 81-5154A, and 81-5154VS).
Made in the USA
