Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube 1/2 hp, 110 volts, 50/60 Hz, single-phase
- Description
- Specs
- You May Also Need
- Q&As
- PDFs
- Reviews
Description
Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube - 8PFP-E1
Continuous-duty rated for aggressive liquids Polypropylene, 316 stainless or PVDF models Designed for free-flowing liquids up to 2,000 cPs viscosity and 1.8 specific gravity. 40" long pump tube fits 2" bung opening. The seal-less design has a 30-minute run-dry capability without damage. Features double suction impeller. Polypropylene and Kynar® pumps have convenient variable orifice discharge fitting. Totally Enclosed Fan Cooled Motor (TEFC) is designed for corrosive environments. 1/2 hp and 1 hp, double insulated, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. 1 hp motor includes speed regulator for precise adjustment of fluid flow. Open Drip-Proof Motor (ODP) is designed for non-corrosive environments. 1/2 hp, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. Explosion-Proof Motor (EP) is 1/10 hp, double insulated, 110 volts, 50/60 Hz, single-phase, with 12' three-wire cord without a plug. CSA-Listed for Class I, Division I, Group D. Air Motor (Air) develops 1/2 hp, uses 17 – 25 CFM @ 50 – 80 psi. Supplied with a regulator valve and muffler. All pumps in this series have a 1" hose barb. Note: When pumping flammables, use only a stainless steel pump tube with an explosion-proof motor and be sure to use a static protection hose kit found in Accessories for Finish Thompson Pumps. Containers will also require grounding. See Bonding and Grounding Wires.s

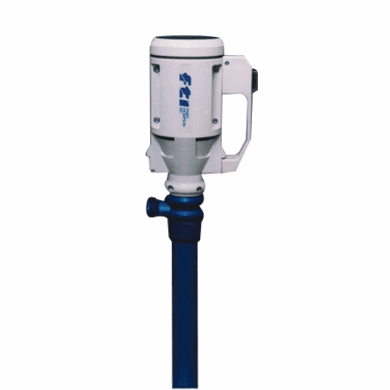

Shown 8PFP-E1
Features:
Internals: Inconel/polypro/Teflon®
Max. GPM: 40
Max. Temp.: 160ºF
Max.Viscosity: 500 cps
Motor: TEFC
Pump Tube: Polypro
Weight: 19 lbs.
Continuous-duty rated for aggressive liquids Polypropylene, 316 stainless or PVDF models Designed for free-flowing liquids up to 2,000 cPs viscosity and 1.8 specific gravity. 40" long pump tube fits 2" bung opening. The seal-less design has a 30-minute run-dry capability without damage. Features double suction impeller. Polypropylene and Kynar® pumps have convenient variable orifice discharge fitting. Totally Enclosed Fan Cooled Motor (TEFC) is designed for corrosive environments. 1/2 hp and 1 hp, double insulated, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. 1 hp motor includes speed regulator for precise adjustment of fluid flow. Open Drip-Proof Motor (ODP) is designed for non-corrosive environments. 1/2 hp, 110 volts, 50/60 Hz, single-phase. The handle has a built-in switch, thermal overload protection with manual reset, 12' cord with plug. Explosion-Proof Motor (EP) is 1/10 hp, double insulated, 110 volts, 50/60 Hz, single-phase, with 12' three-wire cord without a plug. CSA-Listed for Class I, Division I, Group D. Air Motor (Air) develops 1/2 hp, uses 17 – 25 CFM @ 50 – 80 psi. Supplied with a regulator valve and muffler. All pumps in this series have a 1" hose barb. Note: When pumping flammables, use only a stainless steel pump tube with an explosion-proof motor and be sure to use a static protection hose kit found in Accessories for Finish Thompson Pumps. Containers will also require grounding. See Bonding and Grounding Wires.s
Shown 8PFP-E1
Features:
Specifications
- Motor Description TEFC 1/2 HP
- Shaft Polypropylene
- Max. Viscosity 500 cps
- Weight19 lbs
- Length 40"
- Brand Finish Thompson Inc.
You May Also Need
Q & A's
Questions & Answers about Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube | 1/2 hp, 110 volts, 50/60 Hz, single-phase
Ask a question about Finish Thompson High Flow Pump - Tefc Motor - Polypropylene Pump Tube | 1/2 hp, 110 volts, 50/60 Hz, single-phase. Click here
