Variable Speed TEFC Electric Open-Head Drum Mixers 1/2 Horsepower
- Description
- Specs
- You May Also Need
- Q&As
- Reviews
Description

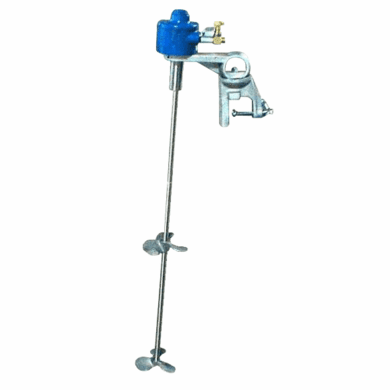

Variable Speed TEFC Electric Open-Head Drum Mixers 1/2 Horsepower
Mixers in the Series 44 are designed with an innovative smaller ball-and-socket type c-clamp that allows for precise positioning of the mixer shaft along with infinite adjustability. These mixers are ideal for a wide variety of uses due to their compact size, light weight, and portability.
Designed for mixing in 55 gallon open-head steel drums
316 stainless steel shaft and solid cast 3-blade propellers
No. of Props: 2
RPM: 1725
115-230V, single-phase power is provided by the 1/2 HP Totally Enclosed Fan Cooled (TEFC) Motor. The motor is mounted control box on the variable speed mixer, and it has a speed control dial that ranges from 0 to 1725 RPM. The cord, plug, and on/off switch are all included in the shipment. 316 stainless steel is used for the coupling, the shaft, and the mixing impellers. The two propellers each have three blades and have a diameter of 4.5 inches. They are mounted on a shaft that is 34 inches long and has a diameter of 1/2 inches.
You can achieve the perfect mixing action thanks to the mount's infinite adjustability.
316 stainless steel shaft and solid cast 3-blade propellers Designed for use in mixing in 55 gallon open-head steel drums Open-head drums of 55 gallons in capacity 2 propellers, 0-1725 revolutions per minute
Designed for mixing in 55-gallon open-head drums Direct drive electric, variable speed electric, exp-proof electric, and air motors
316 stainless steel shaft and solid cast 3-blade propellers are standard Series 44 mixers incorporate a smaller ball & socket type c-clamp for precise positioning of the mixer shaft with infinite adjustability. Lightweight and portable, these mixers are well suited for a variety of applications. 3-blade propellers are solid investment cast 316SS on a 1/2" diameter x 34" long shaft.
TEFC and Variable Speed Electric motors are 115-230V, single phase and ship complete with cord, plug and on/off switch.
Explosion-Proof Electric motors are 115-230V, single phase and so not include a cord, plug, or on/off switch. All electric motors over 1.5 HP are 230-460V/3Ph and do not include cord or plug.
Air motors are inherently explosion-proof and rated at 60 PSI, 0-3000 RPM @ 5-30 CFM.
Mixers in the Series 44 are designed with an innovative smaller ball-and-socket type c-clamp that allows for precise positioning of the mixer shaft along with infinite adjustability. These mixers are ideal for a wide variety of uses due to their compact size, light weight, and portability.
115-230V, single-phase power is provided by the 1/2 HP Totally Enclosed Fan Cooled (TEFC) Motor. The motor is mounted control box on the variable speed mixer, and it has a speed control dial that ranges from 0 to 1725 RPM. The cord, plug, and on/off switch are all included in the shipment. 316 stainless steel is used for the coupling, the shaft, and the mixing impellers. The two propellers each have three blades and have a diameter of 4.5 inches. They are mounted on a shaft that is 34 inches long and has a diameter of 1/2 inches.
You can achieve the perfect mixing action thanks to the mount's infinite adjustability.
316 stainless steel shaft and solid cast 3-blade propellers Designed for use in mixing in 55 gallon open-head steel drums Open-head drums of 55 gallons in capacity 2 propellers, 0-1725 revolutions per minute
Designed for mixing in 55-gallon open-head drums Direct drive electric, variable speed electric, exp-proof electric, and air motors
316 stainless steel shaft and solid cast 3-blade propellers are standard Series 44 mixers incorporate a smaller ball & socket type c-clamp for precise positioning of the mixer shaft with infinite adjustability. Lightweight and portable, these mixers are well suited for a variety of applications. 3-blade propellers are solid investment cast 316SS on a 1/2" diameter x 34" long shaft.
TEFC and Variable Speed Electric motors are 115-230V, single phase and ship complete with cord, plug and on/off switch.
Explosion-Proof Electric motors are 115-230V, single phase and so not include a cord, plug, or on/off switch. All electric motors over 1.5 HP are 230-460V/3Ph and do not include cord or plug.
Air motors are inherently explosion-proof and rated at 60 PSI, 0-3000 RPM @ 5-30 CFM.
- Features:
- Horsepower: 1/2
- No. of Props: 2
- Prop Dia.: 4.5"
- RPM: 0-1725
- Wt. (lbs.): 41
Specifications
- RPM Stainless Steel
- Weight 46 lbs
- Color Blue, Silver
- Motor Description 1/3 HP EP
You May Also Need
Q & A's
Questions & Answers about Variable Speed TEFC Electric Open-Head Drum Mixers 1/2 Horsepower
- Question: What type of drums is the mixer designed for? By Kevin P.
- Answer: It's designed for 55-gallon open-head steel drums.
- Question: How many propellers does the mixer have? By Lucy W.
- Answer: There are two solid cast 3-blade propellers.
- Question: What is the length and diameter of the mixer's shaft? By Omar F.
- Answer: The shaft is 34 inches long and 1/2 inch in diameter.
- Question: What is the range of the speed control dial? By Ava R.
- Answer: Speed control ranges from 0 to 1725 RPM.
- Question: Are the electric motors explosion-proof? By Ethan J.
- Answer: Only the air motors are inherently explosion-proof.
- Question: What additional features come with the electric motors? By Mia C.
- Answer: They come with a cord, plug, and on/off switch.
- Question: What is the diameter of the mixer propellers? By Noah H.
- Answer: Each propeller has a diameter of 4.5 inches.
- Question: What type of clamping mechanism is used? By Isla E.
- Answer: A smaller ball-and-socket type c-clamp for precise positioning.
Ask a question about Variable Speed TEFC Electric Open-Head Drum Mixers 1/2 Horsepower. Click here
