Open Head Drum Mixers 1/4 Hp TEFC Electric Motor
- Description
- Specs
- You May Also Need
- Q&As
- Reviews
Description

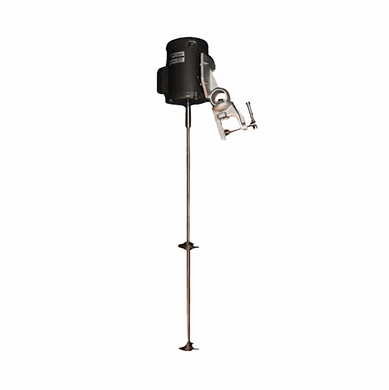

Open Head Drum Mixers 1/4 Hp TEFC Electric Motor
Designed for mixing in 55-gallon open-head drums Direct drive electric, variable speed electric, exp-proof electric, and air motors 316 stainless steel shaft and solid cast 3-blade propellers are standard Series 44 mixers incorporate a smaller ball & socket type c-clamp for precise positioning of the mixer shaft with infinite adjustability. Lightweight and portable, these mixers are well suited for a variety of applications. 3-blade propellers are solid investment cast 316SS on a 1/2" diameter x 34" long shaft.
TEFC and Variable Speed Electric motors are 115-230V, single phase and ship complete with cord, plug and on/off switch.
Explosion-Proof Electric motors are 115-230V, single phase and so not include a cord, plug, or on/off switch. All electric motors over 1.5 HP are 230-460V/3Ph and do not include cord or plug.
Air motors are inherently explosion-proof and rated at 60 PSI, 0-3000 RPM @ 5-30 CFM.
Features:
With a smaller ball and socket type clamp, which is unique to Series 44 mixers, you can place the mixer shaft with pinpoint accuracy and with virtually limitless adjustment options. These mixers are small and lightweight, making them ideal for a wide range of applications.
115-230V, 1-phase is used to power this drum mixer, which includes a 1/4 HP TEFC (Totally Enclosed Fan Cooled) motor that is driven directly from the drum. A cord, plug, and on/off switch are included in the box. It is made of 316 stainless steel, which is used for the coupling, shaft, and mixing impellers. A 1/2 inch diameter x 34 inch length shaft is used to hold the two adjustable and removable three-blade propellers, each of which is 3 inches in diameter and removable.
The infinitely adjustable mount allows you to dial in the perfect mixing motion for every situation.
316 stainless steel shaft and solid cast 3-blade propellers are used for mixing in 55 gallon open-head steel drums. There are two propellers, and the speed is 1725 rpm.
Fits: 55 gallon steel or plastic open-head drums
No. of Props: 2
RPM: 1725
Designed for mixing in 55-gallon open-head drums Direct drive electric, variable speed electric, exp-proof electric, and air motors 316 stainless steel shaft and solid cast 3-blade propellers are standard Series 44 mixers incorporate a smaller ball & socket type c-clamp for precise positioning of the mixer shaft with infinite adjustability. Lightweight and portable, these mixers are well suited for a variety of applications. 3-blade propellers are solid investment cast 316SS on a 1/2" diameter x 34" long shaft.
TEFC and Variable Speed Electric motors are 115-230V, single phase and ship complete with cord, plug and on/off switch.
Explosion-Proof Electric motors are 115-230V, single phase and so not include a cord, plug, or on/off switch. All electric motors over 1.5 HP are 230-460V/3Ph and do not include cord or plug.
Air motors are inherently explosion-proof and rated at 60 PSI, 0-3000 RPM @ 5-30 CFM.
Features:
- Horsepower: 1/4
- No. of Props: 2
- Prop Dia.: 3"
- RPM: 1725
- Wt. (lbs.): 36
With a smaller ball and socket type clamp, which is unique to Series 44 mixers, you can place the mixer shaft with pinpoint accuracy and with virtually limitless adjustment options. These mixers are small and lightweight, making them ideal for a wide range of applications.
115-230V, 1-phase is used to power this drum mixer, which includes a 1/4 HP TEFC (Totally Enclosed Fan Cooled) motor that is driven directly from the drum. A cord, plug, and on/off switch are included in the box. It is made of 316 stainless steel, which is used for the coupling, shaft, and mixing impellers. A 1/2 inch diameter x 34 inch length shaft is used to hold the two adjustable and removable three-blade propellers, each of which is 3 inches in diameter and removable.
The infinitely adjustable mount allows you to dial in the perfect mixing motion for every situation.
316 stainless steel shaft and solid cast 3-blade propellers are used for mixing in 55 gallon open-head steel drums. There are two propellers, and the speed is 1725 rpm.
Specifications
- RPM Stainless Steel
- Weight 36 lbs
- Color Black
- Motor Description 1/4 HP TEFC
